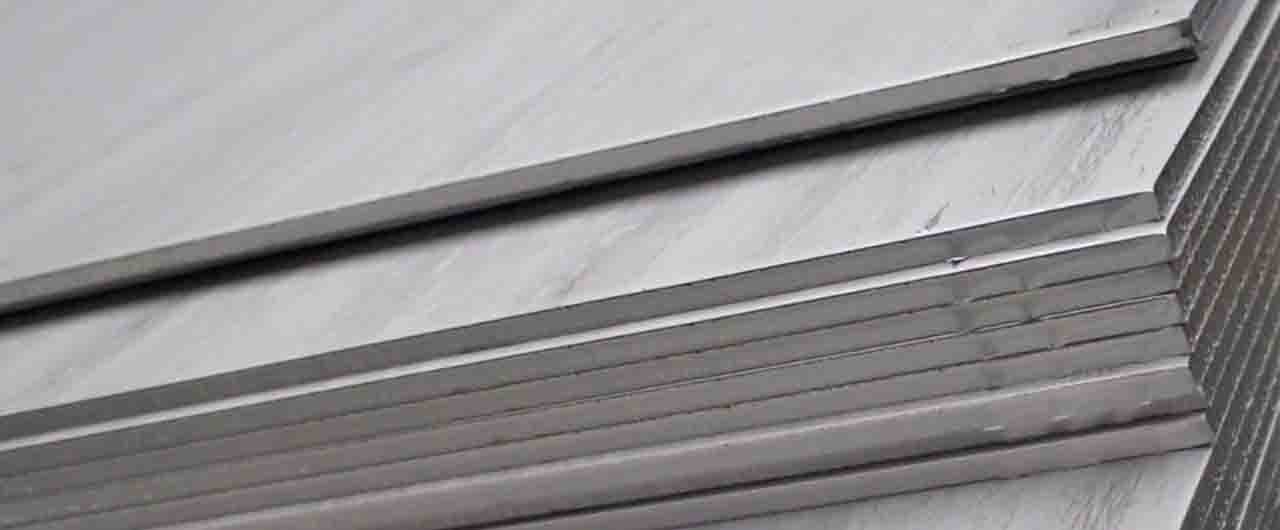

M.S. Plate
M.S. Plate
| THICKNESS IN MM | WT.PERSq.Mtr.Kg | WT.PERSq.Ft.in Kg | THICKNESS IN MM | WT.PERSq.Mtr.Kg | WT.PERSq.Ft.inKg |
| 5mm. | 39.2 | 3.64 | 22 | 172.7 | 16.04 |
| 5.5mm. | 43.2 | 4.01 | 25 | 196.2 | 18.23 |
| 6mm. | 47.1 | 4.38 | 28 | 219.8 | 20.42 |
| 7mm. | 55 | 5.11 | 32 | 251.2 | 23.34 |
| 8mm. | 62.8 | 5.87 | 36 | 282.6 | 26.25 |
| 9mm. | 70.5 | 6.56 | 40 | 314 | 29.17 |
| 10mm. | 78.5 | 7.29 | 45 | 353.2 | 32.81 |
| 11mm. | 86.4 | 8.03 | 50 | 392.5 | 36.46 |
| 12mm. | 94.2 | 8.75 | 56 | 439.6 | 40.83 |
| 14mm. | 109.9 | 10.21 | 63 | 494.6 | 45.95 |
| 16mm. | 125.6 | 11.87 | 71 | 557.4 | 51.78 |
| 18mm. | 141.3 | 13.13 | 80 | 628 | 58.35 |
| 20mm. | 157.6 | 14.56 |
