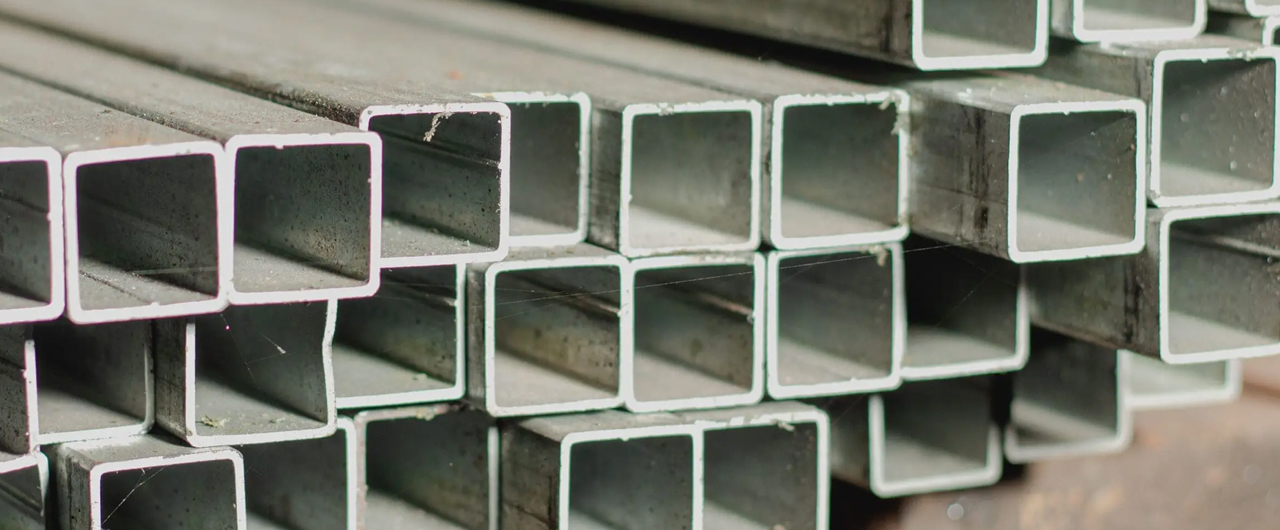

MS Square Pipe
MS Square Pipe
(As per 4923-1997) (YST 210/240/310)
| Square Size | Thickness | Weight Per 1Pc |
| 15 X 15 mm | 1.2 mm | 3.15 kg |
| 15 X 15 mm | 1.6 mm | 4.15 kg |
| 20 X 20 mm | 1.2 mm | 4.30 kg |
| 20 X 20 mm | 1.6 mm | 5.65 kg |
| 20 X 20 mm | 2.0 mm | 6.95 kg |
| 20 X 20 mm | 2.8 mm | 9.35 kg |
| 20 X 20 mm | 1.0 mm | 4.55 kg |
| 25 X 25 mm | 1.2 mm | 5.40 kg |
| 25 X 25 mm | 1.6 mm | 7.15 kg |
| 25 X 25 mm | 2.0 mm | 8.80 kg |
| 25 X 25 mm | 2.5 mm | 10.80 kg |
| 25 X 25 mm | 3.0 mm | 12.70 kg |
| 30 X 30 mm | 1.2 mm | 6.55 kg |
| 30 X 30 mm | 1.6 mm | 8.65 kg |
| 30 X 30 mm | 2.0 mm | 11.00 kg |
| 30 X 30 mm | 2.5 mm | 13.20 kg |
| 30 X 30 mm | 3.0 mm | 15.60 kg |
| 32 X 32 mm | 2.0 mm | 11.45 kg |
| 32 X 32 mm | 2.5 mm | 14.10 kg |
| 32 X 32 mm | 3.0 mm | 16.20 kg |
| 40 X 40 mm | 1.2 mm | 7.90 kg |
| 40 X 40 mm | 1.6 mm | 11.65 kg |
| 40 X 40 mm | 2.0 mm | 14.45 kg |
| 40 X 40 mm | 2.5 mm | 17.85 kg |
| 40 X 40 mm | 3.0 mm | 20.55 kg |
| 40 X 40 mm | 3.6 mm | 25.15 kg |
| 40 X 40 mm | 4.0 mm | 27.65 kg |
| 50 X 50 mm | 12 mm | 11.00 kg |
| 50 X 50 mm | 16 mm | 14.65 kg |
| 50 X 50 mm | 2.0 mm | 18.20 kg |
| 50 X 50 mm | 2.5 mm | 22.55 kg |
| 50 X 50 mm | 3.0 mm | 26.00 kg |
| 50 X 50 mm | 3.6 mm | 31.82 kg |
| 50 X 50 mm | 4.0 mm | 35.20 kg |
| 50 X 50 mm | 5.0 mm | 43.25 kg |
| 60 X 60 mm | 16 mm | 17.65 kg |
| 60 X 60 mm | 2.0 mm | 21.95 kg |
| 60 X 60 mm | 3.0 mm | 32.45 kg |
| 60 X 60 mm | 3.6 mm | 38.65 kg |
| 60 X 60 mm | 4.0 mm | 42.70 kg |
| 60 X 60 mm | 5.0 mm | 52.65 kg |
| 72 X 72 mm | 1.6 mm | 21.25 kg |
| 72 X 72 mm | 2.0 mm | 26.45 kg |
| 72 X 72 mm | 2.5 mm | 32.80 kg |
| 72 X 72 mm | 3 mm | 37.95 kg |
| 72 X 72 mm | 3.6 mm | 46.75 kg |
| 72 X 72 mm | 4.0 mm | 51.70 kg |
| 72 X 72 mm | 5.0 mm | 63.90 kg |
| Square Size | Thickness | Weight Per 1Pc |
| 80 X 80 mm | 1.6 mm | 23.65 kg |
| 80 X 80 mm | 2.0 mm | 29.45 kg |
| 80 X 80 mm | 3.0 mm | 43.75 kg |
| 80 X 80 mm | 4.0 mm | 57.70 kg |
| 80 X 80 mm | 5.0 mm | 71.45 kg |
| 91 X 91 mm | 1.6 mm | 27.00 kg |
| 91 X 91 mm | 2.0 mm | 33.60 kg |
| 91 X 91 mm | 3.0 mm | 49.90 kg |
| 91 X 91 mm | 4.0 mm | 66.00 kg |
| 91 X 91 mm | 5.0 mm | 81.90 kg |
| 100 X 100 mm | 2.0 mm | 36.95 kg |
| 100 X 100 mm | 3.0 mm | 53.20 kg |
| 100 X 100 mm | 3.6 mm | 65.65 kg |
| 100 X 100 mm | 4.0 mm | 72.75 kg |
| 100 X 100 mm | 5.0 mm | 90.00 kg |
| 100 X 100 mm | 6.0 mm | 107.00 kg |
| 113 X 113 mm | 3.0 mm | 65.35 kg |
| 113 X 113 mm | 4.0 mm | 82.50 kg |
| 113 X 113 mm | 5.0 mm | 102.40 kg |
| 102 X 120 mm | 4.0 mm | 87.70 kg |
| 120 X 120 mm | 5.0 mm | 108.90 kg |
| 132 X 132 mm | 3.0 mm | 73.00 kg |
| 132 X 132 mm | 4.0 mm | 96.80 kg |
| 132 X 132 mm | 5.0 mm | 120.20 kg |
| 132 X 132 mm | 6.0 mm | 142.40 kg |
| 150 X 150 mm | 3.0 mm | 83.00 kg |
| 150 X 150 mm | 4.0 mm | 110.00 kg |
| 150 X 150 mm | 5.0 mm | 137.00 kg |
| 150 X 150 mm | 6.0 mm | 163.00 kg |
| 150 X 150 mm | 8.0 mm | 205.00 kg |
| 180 X 180 mm | 4.0 mm | 133.00 kg |
| 180 X 180 mm | 5.0 mm | 165.00 kg |
| 180 X 180 mm | 6.0 mm | 197.00 kg |
| 180 X 180 mm | 8.0 mm | 261.00 kg |
| 200 X 200 mm | 4.0 mm | 148.00 kg |
| 200 X 200 mm | 5.0 mm | 184.00 kg |
| 200 X 200 mm | 6.0 mm | 220.00 kg |
| 200 X 200 mm | 8.0 mm | 280.00 kg |
| 220 X 220 mm | 4.0 mm | 163.00 kg |
| 220 X 220 mm | 5.0 mm | 202.00 kg |
| 220 X 220 mm | 6.0 mm | 242.00 kg |
| 220 X 220 mm | 8.0 mm | 310.00 kg |
| 250 X 250 mm | 4.0 mm | 185.00 kg |
| 250 X 250 mm | 5.0 mm | 231.00 kg |
| 250 X 250 mm | 6.0 mm | 276.00 kg |
| 250 X 250 mm | 8.0 mm | 343.00 kg |
