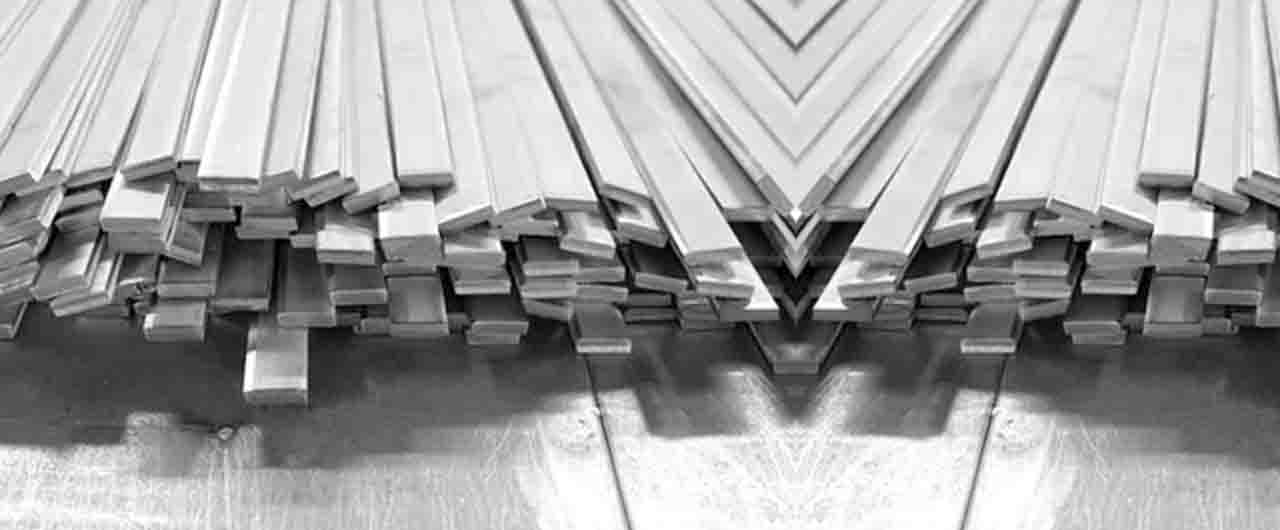

MS Coil
MS Coil
| WIDTH IN MM | THICKNESS IN MM | KG PER METER | ||||||
| 5 | 6 | 8 | 10 | 12 | 16 | 20 | 25 | |
| 12 | 0.5 | 0.6 | 0.8 | 0.9 | 1.1 | 1.5 | 1.9 | 2.4 |
| 20 | 0.8 | 0.9 | 1.3 | 1.6 | 1.9 | 2.5 | 3.1 | 3.9 |
| 25 | 1 | 1.2 | 1.6 | 2 | 2.4 | 3.1 | 3.9 | 4.9 |
| 32 | 1.3 | 1.5 | 2 | 2.5 | 3 | 4 | 5 | 6.3 |
| 40 | 1.6 | 1.9 | 2.5 | 3.1 | 3.8 | 5 | 6.3 | 7.8 |
| 50 | 2 | 2.4 | 3.1 | 3.9 | 4.7 | 6.3 | 7.8 | 9.8 |
| 63 | 2.5 | 3 | 4 | 4.9 | 5.9 | 7.9 | 9.9 | 12.4 |
| 75 | 2.9 | 3.5 | 4.7 | 5.9 | 7.1 | 9.4 | 11.8 | 14.7 |
| 80 | 3.1 | 3.8 | 5 | 6.3 | 7.5 | 10 | 12.6 | 15.7 |
| 100 | 3.9 | 4.7 | 6.3 | 7.9 | 9.4 | 12.6 | 15.7 | 19.6 |
| 125 | 4.9 | 5.9 | 7.8 | 9.8 | 11.8 | 15.7 | 19.6 | 24.5 |
| 150 | 7.1 | 9.4 | 11.8 | 14.1 | 18.8 | 23.6 | 29.4 | |
